Molten Sulpher Pumps

Molten Sulpher Pumps
Molten Sulpher Pumps
Product Code : 11
Brand Name : AURO PUMPS
Trade Information
  • Price
  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • Palej , Gujarat
  • Payment Terms
  • Cheque, Others
  • Delivery Time
  • As per product Months
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

With huge experience and expertise in this sector, we are able to manufacture and export Molten Sulpher Pumps. These products are used for pumping molten in different industrial applications. Known for their non-corrosive surface and high strength, these products are able to provide accurate and optimum performance. Our offered products have been acknowledged by the clients for their effective and hassle free functioning. Molten Sulpher Pumps are packed in special packaging material in order to avoid any damage to it at the time of transit.

Other details:

Operating Parameters

  • Flow   : Up to 600 M3/hr

  • Head  : Up to 90 Mtr

  • Temp.: Up to 150 C

  • MOC : WCB / MS or SS316

  • Speed: 1450 or 2900 RPM

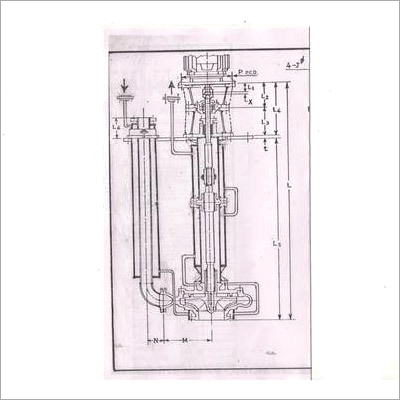

Design

The Pumps are centrifugal, single-stage; with downward axial suction. Radial discharge is free connections to the pipes as it is directly flanged to the discharge pipe, whose upper flange line in a horizontal plane above plate.

The shaft is supported on its upper end by a grease lubricated ball bearing. Lateral support of the shaft is obtained through radial bearing s made from various anti-friction materials

This Vertical submerged pump for Molten Sulpher application has jacketed volute casing & stuffing box, it also has jacketed column pipe & discharge pipe & steam piping connection are provided to all this jacket on the pump, The steam connection is given to this jacket piping to maintain temp. of the entire pump so that Molten sulpher remain in moton form.

All this jacket along with piping connection are pressure tested for air tight construction.

The simplest construction consists of a packing ring which prevents loss of grease from bearing housing and vapor & odor leakage from the tank.

The plate is normally rectangular in shape. Different shapes are also available to suit various installation requirements.

General specification

Centrifugal vertical single stage pumps, directly derived from our ACC series accordance with DIN 24256 (ISO 2858) / Din 24255. Maximum shaft length is 5 m. (15ft.) standard construction for rotational velocities is upto 1450rpm, special constructions, allowing maximum rotational velocities upto 2900rpm is also available. Radial bearings are normally lubricated by the pumped liquid.In case of special liquids or high operating pressures, either a gland packing or a mechanical seal can be assembled on the shaft. Seals in these cases; are flushed with the liquids handled. Forced lubrication is designed for radial bearing.
